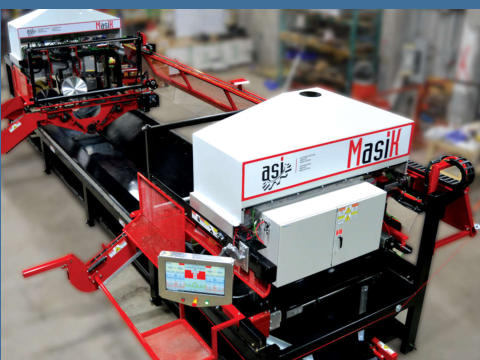

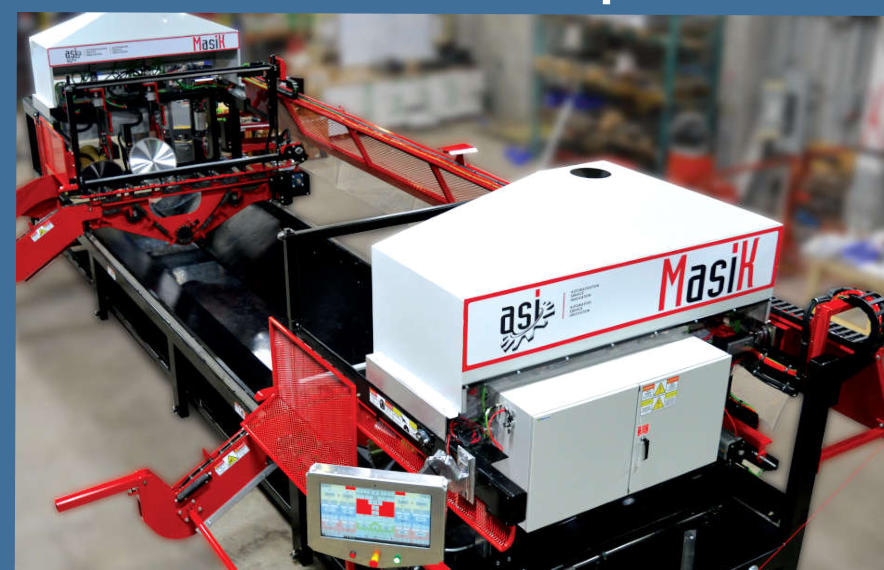

• Fully automated, five-bladed saw that allows the cutting of parts for walls, beams and trusses • Sealed bearing used to minimize maintenance time and increase lifetime • State-of-the-art control panel featuring Schneider-Electric PacDrive 3 electronics • 22 high resolution, high speed, high torque Schneider-Electric LXM62 ILM Series integrated AC servomotors for fast and accurate positioning • Planetary gearboxes with lifetime lubrification for increased efficiency and minimal maintenance • Square webs down to: 18in in automatic mode, 15in in manual mode • Automatic, Semi-automatic & hybrid manual mode • Easy axis by axis calibration • 24in Lenovo touchscreen SSD computer with Windows 11 Pro operating system and basic software featuring an ultra intuitive HMI • Intuitive Multilingual English, French and Spanish HMI • Lifetime access to software updates

• Cuts wall, floor and roof truss lumber 2×3 to 2×12 • Cuts 18in to 20ft pieces • Average setup time < 5 sec. • Square webs down to: 18in in automatic mode 15in in manual mode • Angled webs 20/70 70/20 to: 36in in automatic mode 32in in manual mode • Saw files read: EHX, TRS, Sapphire XML, EZY, CYB, WCD, ASI, BTL, BTLx • Angle adjust from 0° to 105° on blades 1 to 4: 20in diameter 7.5 HP motor • Angle adjust from 0° to 90° on blade 5: 32in diameter 10 HP motor • 23 flights infeed chain/12 in between flights
