FEATURES • Handles wall frame from 2×3 to 2×8, up to 30ft long • Wall frame height from 34in to 146-1/2in • 1 stud every 5 sec. dry cycle • 1 stud every 12 sec. normalized cycle, w/o noggins • Configurable studs nailing pattern, height by height • Up to 3 nails per sec. • 2000 to 3500 nail coil holder • Intuitive Multilingual English, French and Spanish HMI • Wall files read: EHX, Sapphire XML, WCD, ASI, BTL, BTLx

INCLUDES • Automatic nailing system simultaneously nailing top and bottom plates • Two (2) automated stops driven by servomotors pushing the frame gradually as the • wall gets build • Multi-point wood piece retaining and tightening system • Grippers at top and bottom plate ends to open up the frame when inserting studs • and openings • One-level stud feeder, handling 2×3 to 2×8: • Store and feed studs required to build the wall, position them in the right order. • Motorized with an automatic and a forward/reverse step by step manual mode • Two (2) MAX CN100 pneumatic nailer, or equivalent: • Handles nail from 2-1/4 to 4in in length; 0.099in to 0.148in diameter • Hybrid aluminum-steel structure • Five (5) Schneider-Electric high resolution, high torque, high speed BMi/ILA1series • servomotors • Planetary gearboxes with lifetime lubrication for increased efficiency and minimal • maintenance • Thirty (30) feet conveyor section on the exit side for a larger buffer zone • 24in Lenovo touchscreen with asi(m) software and ultraintuitive human machine • interface • Electrical control panel meeting cULus standards • Easy axis by axis calibration • Manual & automatic modes • Lifetime access to software updates

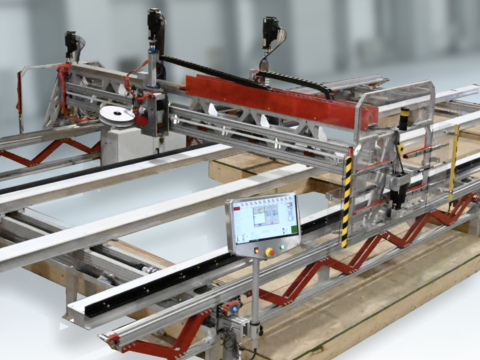

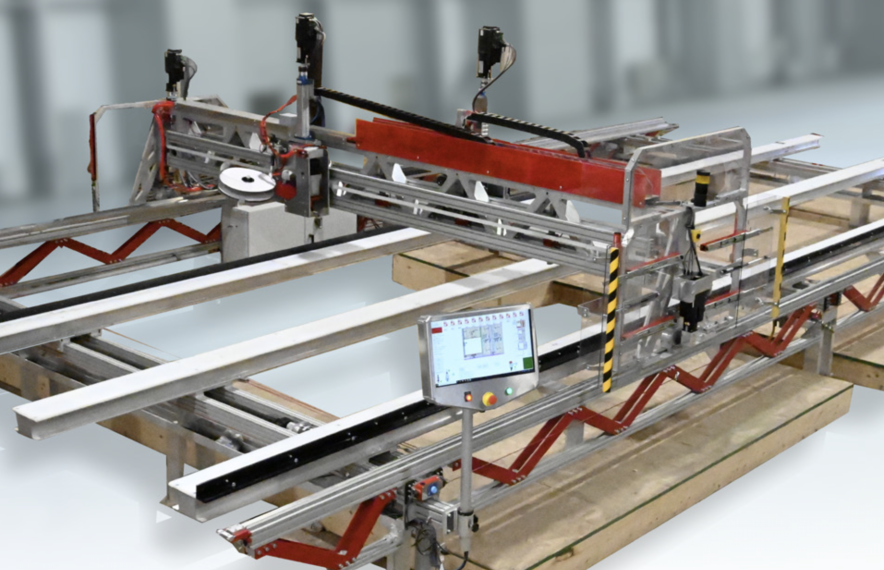

FEATURES • Handles frame made of 2×3 to 2×8, up to 30ft long • Max wall and sheating height = 9-1/2in • Wall frame height from 34in to 148in • Linear speed up to 39in/sec. • Nailer tilts at +/- 5° for vertical sheet joints • Configurable nailing pattern: • Independent settings in between studs and perimeter • Nailing speed adjusts to nailer capacity • Up to 3 nails per second • 2000 to 3500 nail coil holder • Intuitive multilingual English, French and Spanish HMI • Wall files read: EHX, Sapphire XML, WCD, ASI, BTL, BTLx

INCLUDES • Squaring and nailing automated system in one single module. Optional routing automated module for openings and wind braces • Gantry, nailer and router moving using servomotors linked to steel reinforced belts for higher speed and precision • One (1) MAX CN100 pneumatic nailer, or equivalent, to fix OSB / Aspenite and/or R4 insulating panels: • Handles nail from 2-1/4 to 4in long; 0.099 to 0.148in diameter • Unique system using 2.5in roofing nails for R4 panels instead of plastic washers • Numerical control of nailing height: • Adjustable and recordable • Hybrid aluminum-steel structure • Eight (8) Schneider-Electric high resolution, high torque, high speed servomotors BMi series • Planetary gearboxes with lifetime lubrication for increased efficiency and minimal maintenance • Thirty (30) feet exit conveyor • 24in Lenovo touchscreen SSD computer with asi(m) software and Windows 11 Pro OS, c/w ultra-intuitive human machine interface • Electrical control panel cULus certified • Easy axis by axis calibration • Manual & automatic modes • Lifetime access to software updates

FEATURES • Openings can be made of 2×3 to 2×8 • Handles up to 12ft in width • Openings height from 31in to 143-1/2in • Two (2) possible configurations: • Openings feeding from the side • The openings comes in from the stationary side (top of wall) • Openings feeding from the end • The openings comes from the end of the machine, which adds a 15ft support structure that serves as a buffer zone • Open design lets you decide your opening assembly table configuration (not included)

INCLUDES • Eight (8) aluminum legs mounted on pneumatic cylinder and equipped with 3in rollers for side feeding or track rollers for rear feeding: • Allows lifting of heavy openings • Positions them within the wall frame • Lower the openings in it once in place • This section is an extension of section asi(M)1 and is controlled by the motion controller included in that section
