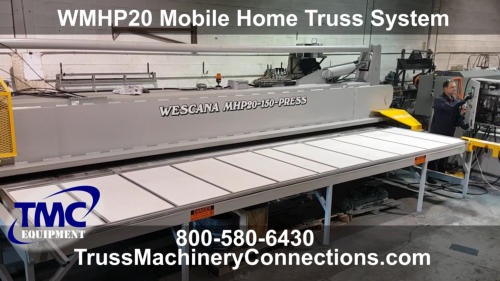

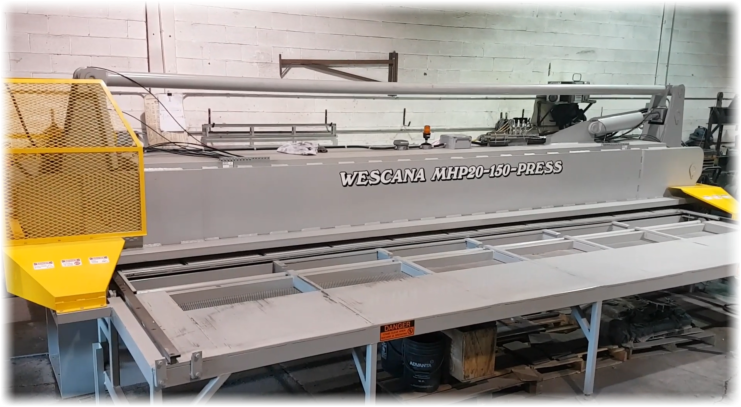

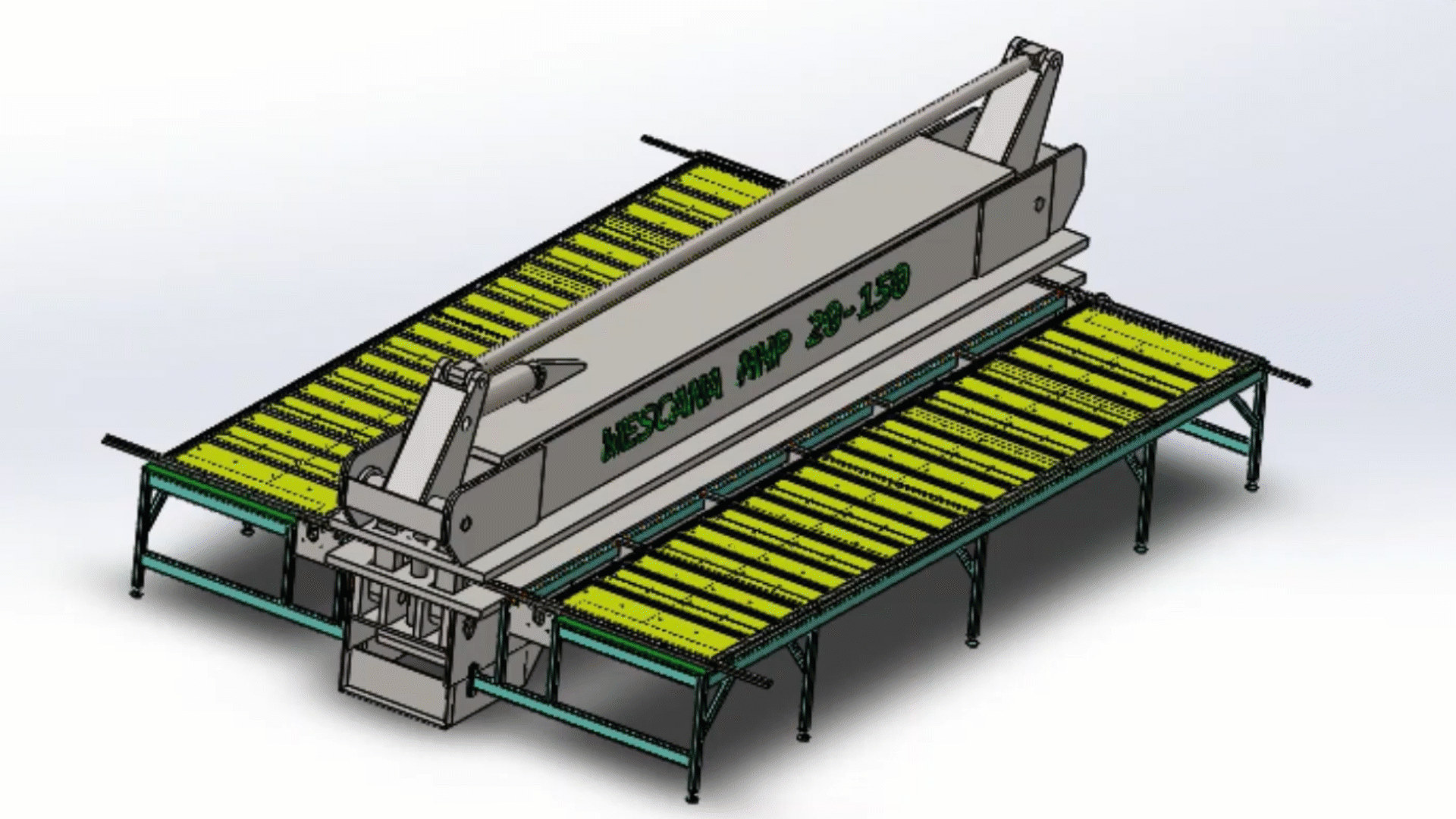

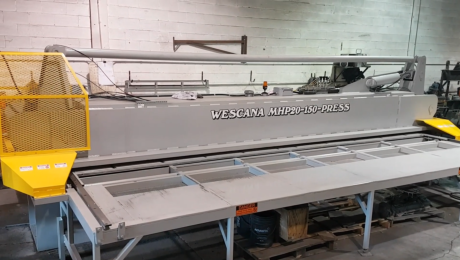

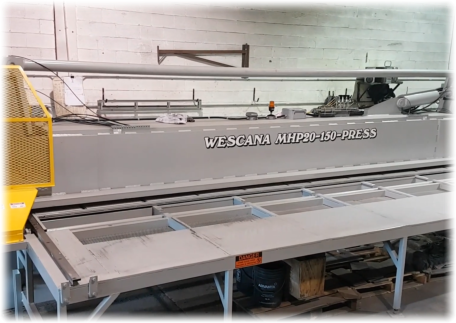

The Wescana MHP20 will build trusses 4’ in height and up to a 20’ span.
•
150 Ton hydraulic pressing capacity
•
Fast 10 second cycle time per truss
•
(2) Sliding tables on either side of the press for maximum production.
Other Machine Sizes Available:
•
MHP14 (4’x14’ Working Table Size)
•
MHP16 (4’x16’ Working Table Size)
•
MHP18- (4’x18’ Working Table Size)
Product Video
•
25 hp motor, 460/575VAC, 3 phase, 60Hz motor
•
4' x 20' x 2" thick pressing platen
•
Touch screen controls on the main panel
•
Dual remote-control stations
•
1 hydraulic power pack
•
Automatic and manual controls
