Automates length and angle cuts or length only
•

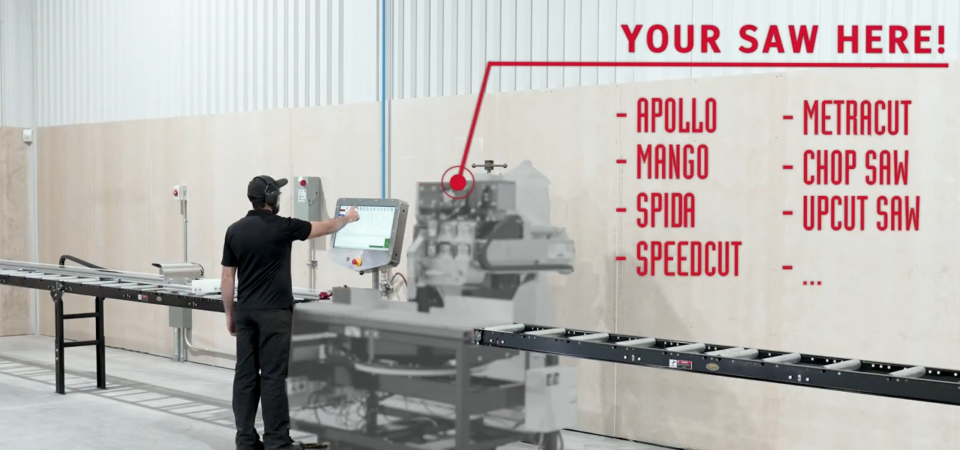

Fits on your existing saw frame and conveyor
system:
o
asiRS
o
Apollo
o
Spida
o
SpeedCut
o
MetraCut
o
Radial saw
o
Upcut saws
•

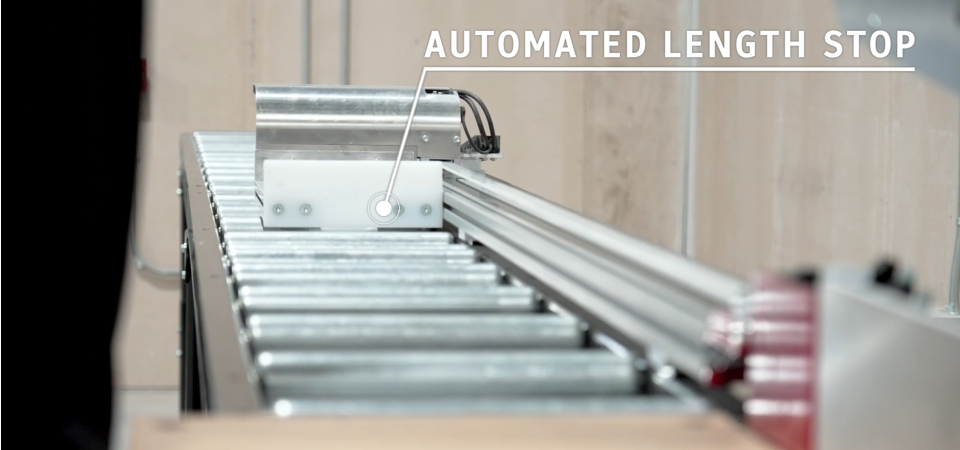

Steel reinforced polyurethane positioning belt
ensures accuracy
•
Up to 15°/sec. Angulation
•

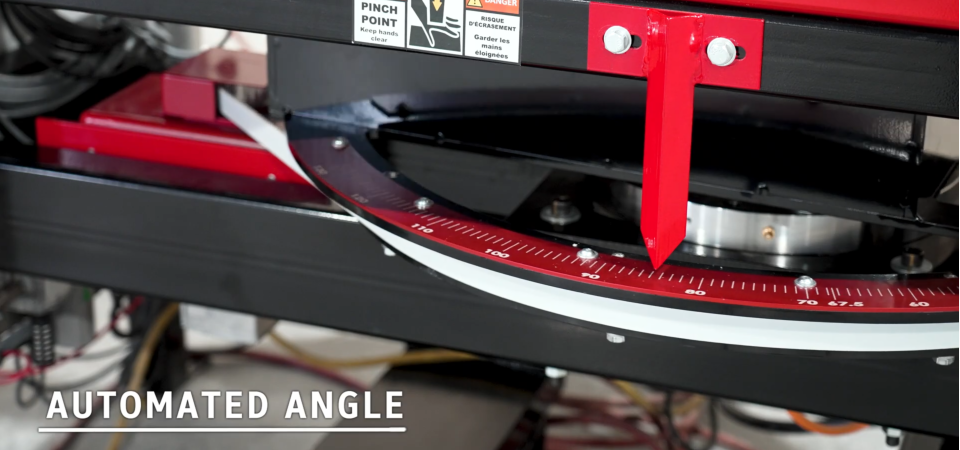

Angles adjust from 7° to 90° (frame depending)
> 90° angles done flipping the component
•
Length adjust from 0in to 23ft (frame depending)
•

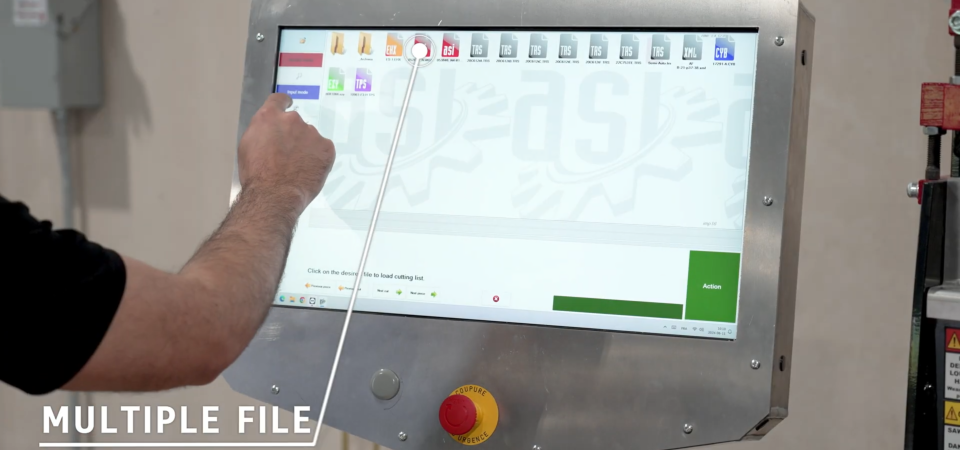

Can be connected to your network to upload the
cutting lists directly to the computer
•
Saw files read: EHX, TRS, Sapphire XML, EZY,
CYB, WCD, ASI, BTL, BTLx
•
Intuitive multilingual English, French and Spanish
HMI
•
Length and/or angle automation system
•
Up to two (2) high resolution, high speed & high
torque servo motors for accurate positioning with
integrated ILA2 series Schneider-Electric drives.
•

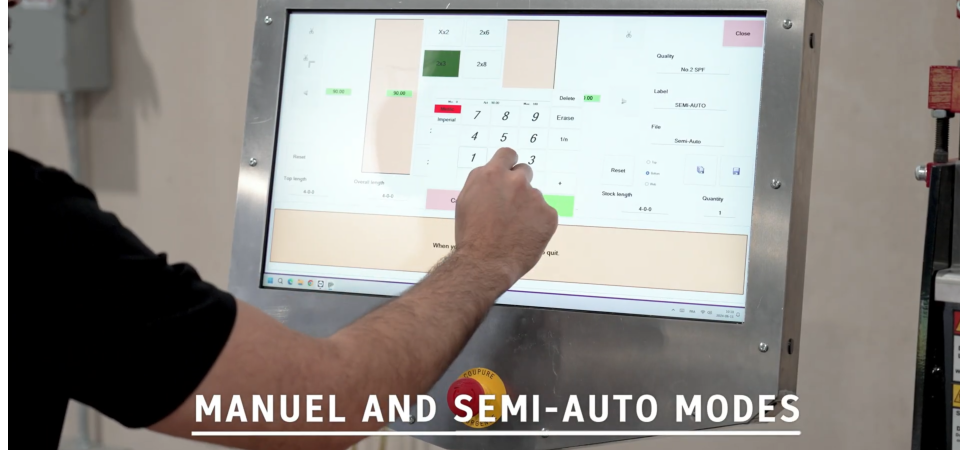

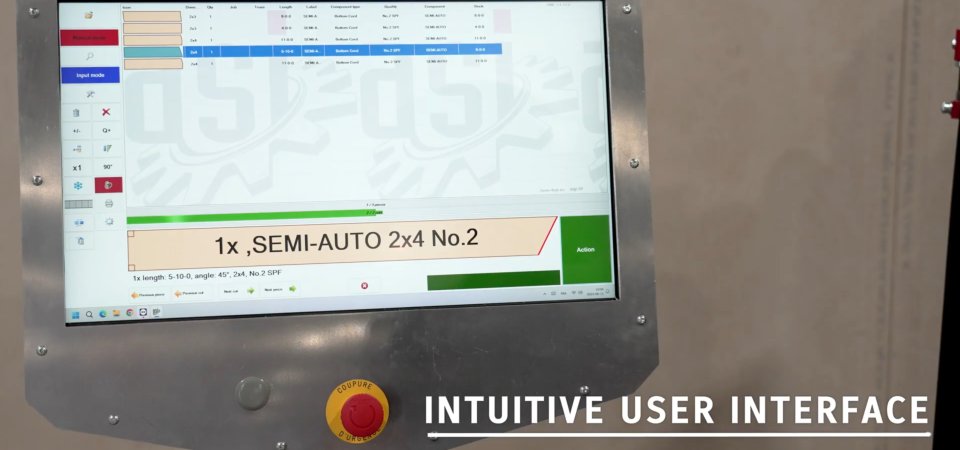

24in Lenovo touchscreen with BasiC software and
ultraintuitive human machine interface.
•
Easy axis by axis calibration.
•
Step by step mode for:
o
Diagnostics
o
Maintenance
o
Cleaning
•
Machine configuration backup system for seamless
recovery/restart
•
Real-time statistics compilation and error tracking,
accessible via our customer portal
•
cULus approved control panel
•
Lifetime access to software updates
•
BasiC L automation for Length Only
o
Plate marker
o
Support table for your saw
•
BasiC AL automation for Angle and Length
o
Trusses + plates
•

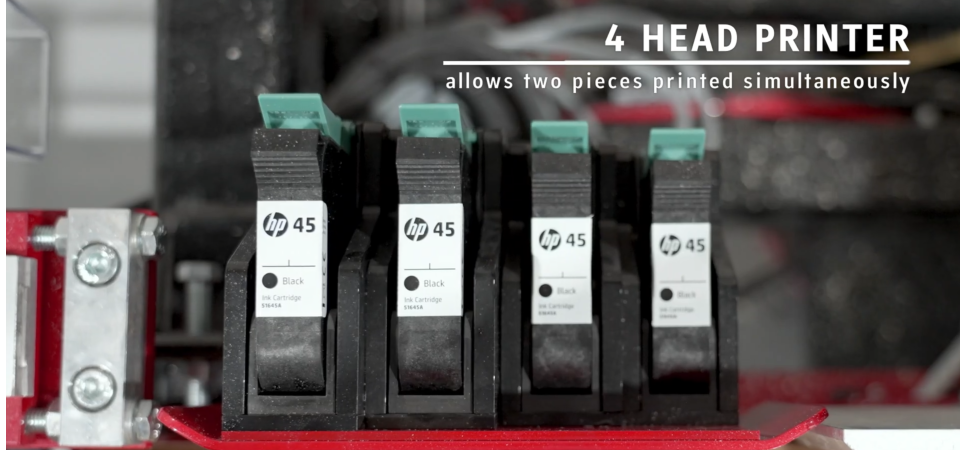

Printing System for marking wall plates
o
3 or 4 pens options
•
Customizable length up to 40 ft
•
Lot of roller conveyors and supporting stands
•
Component cart
•
Infeed/Outfeed freestanding track rollers
•
Lot of critical spare parts
•
Periodic maintenance program
