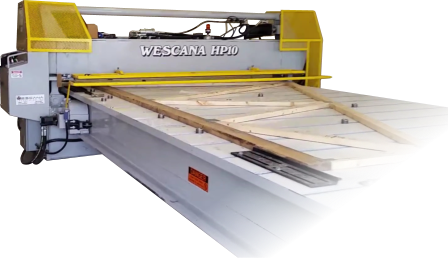

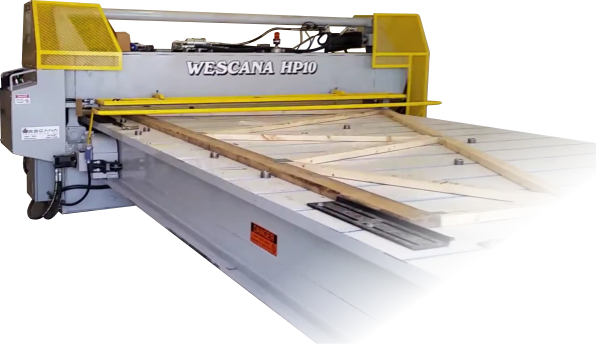

WHP10, Hydraulic Truss Press, Features:
•
20 hp, 3 phase, 208/230/460/575VAC, 60Hz motor
•
50 Ton hydraulic pressing capacity
•
120” x 24" pressing platen
•
10’ x 45’ steel table frame with 1/2” steel Plate C/W 1”
Plastic top
•
Manual jigging 12” O/C slotted table top
•
6" maximum press opening height
•
User Friendly Operations Controls
•
Ride on platform
•
Joystick Operation Control
•
2-wheel drive
•
2' per second travel speed
Optional Features:
•
Typical table lengths: 40’ or 45’ option
•
Floor Truss Jig
