14’ Gantry Roller Press Tables System: • Steel top slotted tables • 14’-6” Wide x 8’ Long • Intelli.Jig Ready • Adjustable legs with anchor bolts • 80’ of overhead power supply • 2 - 14’-6” x 5’ Park Stations
14’ Center Powered Conveyor System: • 1 hp, 3 phase, 208/230/460/575VAC, 60Hz gear motors • 4” rollers, 48” O/C • 14’ Wide powered conveyor • Every roller is powered • 1” Drive and idle shafts • 4.5” diameter rollers • Adjustable legs with diagonal bracing • HSS Steel Tubing frame Intelli.Jig (Optional): • Automated Jigging Solution • 16” O.C. Jigging Rail Spacing • Touch Screen User Interface • Jigging Data Import - Support for all major software vendors
Promotional Pictures
14’ Sloped Side Ejector with skate wheel conveyors: • 14’ skate wheel conveyor • 3.5” pneumatic lifting cylinder • Off –set linkages to allow a swing-out popup motion • 3/4” Air manifolds for side ejectors • Control Valves
Side Roll Truss Transfer conveyors: • 15’-2” Powered Side Roller Sections • 1hp, 3 phase 208/230/460/575VAC, 60Hz Drive gear motors • Chain link coupling • 1.25” drive shaft • Pillow block bearings

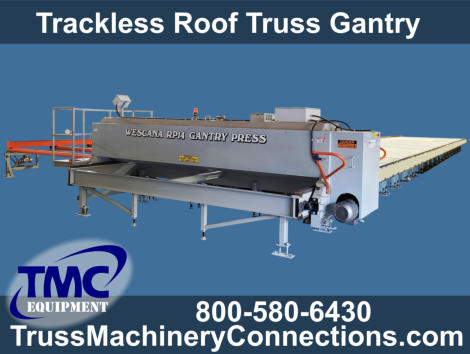

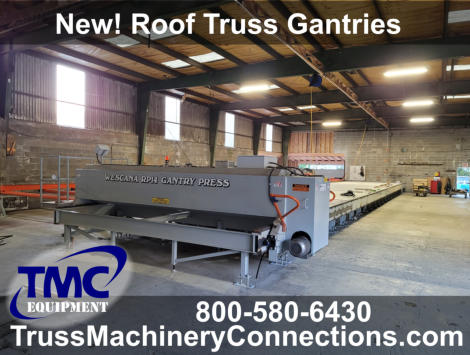

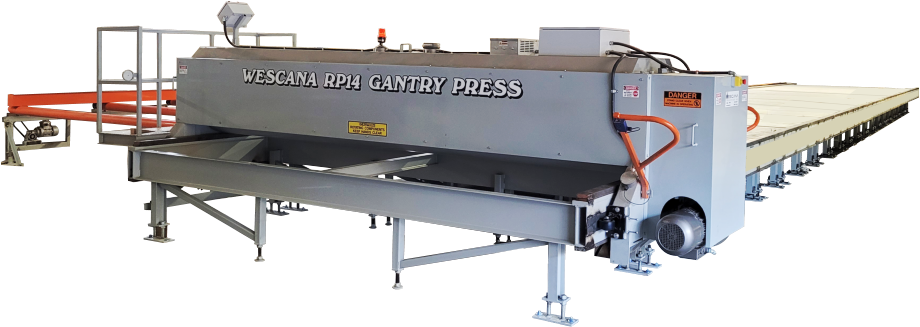

Gantry Roller Press Head, WRP14 System: • 7½ HP, 3 phase, 230/460/575VAC, 60Hz motor, with safety brake • VFD motor drive control • 14' wide, 24"x1" roll • Ride on platform at table height • Joystick Operation Control • 2' per second travel speed
Truss machinery Connections, Inc
Intelli.Jig™ Automated Gantry Jigging Fast. Smooth. Quiet. Powered by state-of-the-art servo technology, the Intelli.Jig features an intuitive touchscreen interface for effortless operation and rapid deployment across all your truss jigging applications. Key Features: • Trouble-Free Operation: Self-contained jigging rails tuck neatly beneath the table. • Low Maintenance: Enclosed moving parts keep dust and debris out to maximize uptime. • User-Friendly Interface: Quick setup and effortless job changing.
